Japanese Medical Gas Outlets
Japanese Medical Gas Outlets

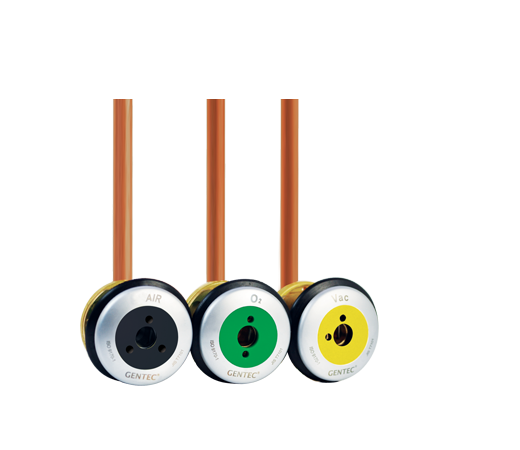

GENTEC gas outlets are designed for delivery of medical gas from a central pipeline system. These outlets are 100% individually tested for leaks to ensure safety. The outlets are designed with safety in mind and comply fully with ISO 9170-1. Outlets are manufactured in an ISO 9001: 2008 and ISO 13485 registered facility.
Features
Color-coded for easy gas service identification
Modular structure, convenient maintenance
A variety of installation, easy to use
100% tested and individually packaged
Compliant with ISO 9170-1 and JIST 7101
Dimensions（Console Type）
Dimensions（Console Type）
Dimensions（Wall Type）
Dimensions（Wall Type）
Ordering Information
Ex: 3818E
Series		 - O
Gas Service		 - S
Inlet Direction		 P8
Inlet Connection		 - S
Lid Type		 / B
Type of Mounting
3818E: Console Type
3828E: Wall Type
 O: Oxygen
V: Vacuum
A: Air (400 kPa)
2: N2O
C: CO2*
N: N2-800*
A8: Air-800*
 S: 90°
R: 180°
SJ: 90°, with
Maintenance valve
(Only for Console Type)
 P8: 8 mm O.D. Tubing
P10: 10 mm O.D. Tubing
P12: 12 mm O.D. Tubing
H4: 1/4" Hose Barb
H5: 5/16" Hose Barb
M14: M14 X 1. 5 VCR Thread
None: Round-faced Pressure Lid (ABS)
S: Round-faced Pressure Lid (Aluminium)
 None: With console plate
B: With installation bracket
(Only for 3818E Series)
F: Flush Mount
W: Surface Mount
(Only for 3828E Series)

*: Please ask GENTEC or your local distributor for availability.
