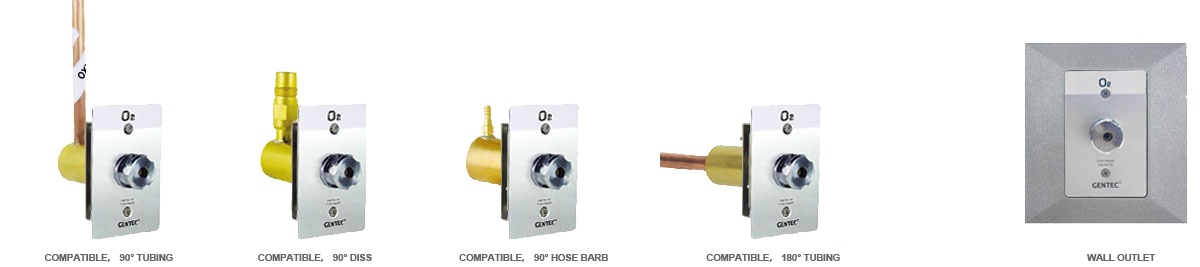

French Medical Gas Outlets
French Medical Gas Outlets
GENTEC® gas outlets are designed for delivery of medical gas from a central pipeline system. These outlets are 100% individually tested for leaks to ensure safety. The outlets are designed with safety in mind and comply fully with ISO 9170-1.
Features
Indexed to prevent interchangeability of gas services
Easy conversion of quick connection or DISS type latch valve assemblies
Modular design capability
Color-coded for easy gas service identification

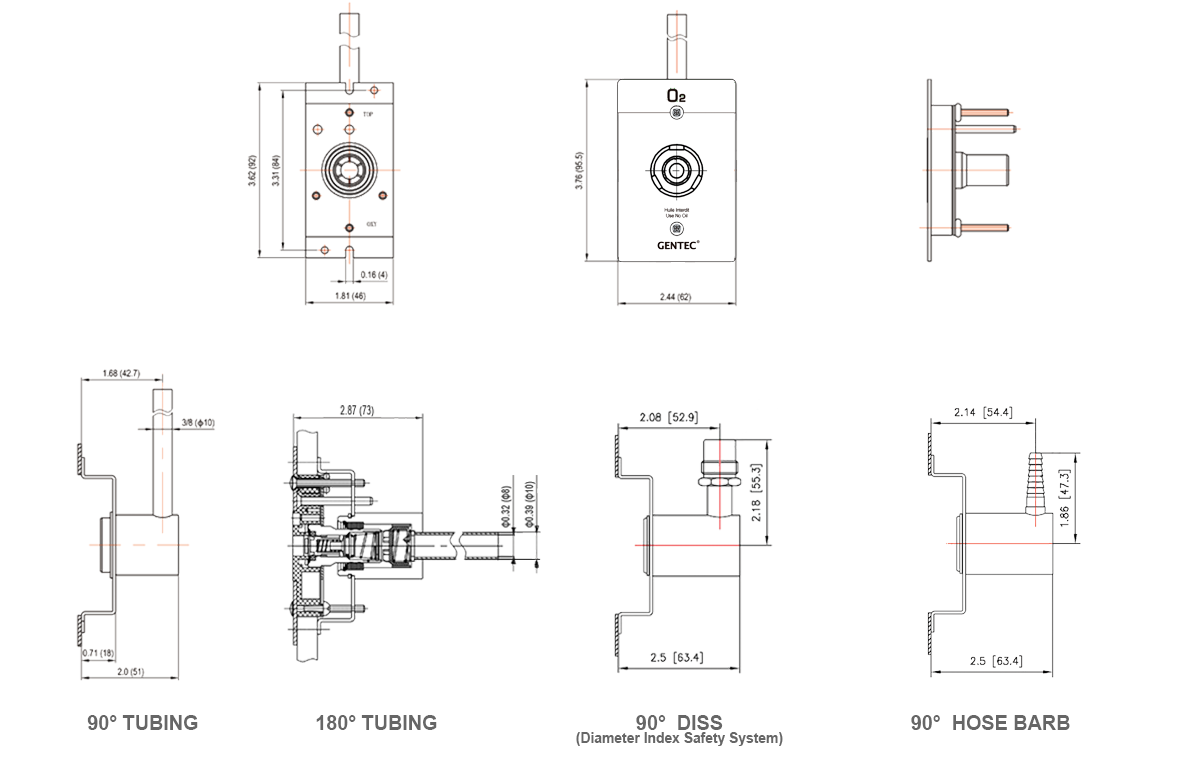

DIMENSIONS
DIMENSIONS
Ordering Information
Ex: 38 1
Installation
5
Type
E
Color Code
- O
Gas Service
- S
Inlet Direction
- H
Inlet Connection
1: Console Type
2: Wall Type
5:French
U:NFPA 99 Color
E:ISO 32 Color
O: Oxygen
V: Vacuum
A: Air (400 kPa)
2: N2O
W: WAGD
C: CO2*
N: N2-800*
IA: Air-800*
None: 90°
R: 180°
None: : 1/2" O.D. Tubing
D: DISS
H: Hose Barb
